Press type | H-frame hydro-pneumatic presses |
---|---|
Operation | Control ( optional ) |

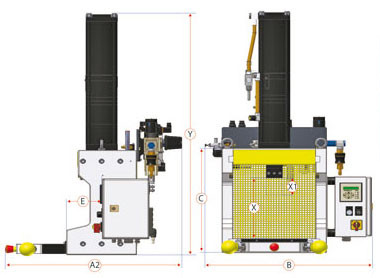

Installation height | 303 mm |
Installation width | 353 mm |
Stroke/power stroke | 50 mm / 6 mm (optional) |
Pressing force power stroke | 150 kN |
Pressing force approach | 6,5 kN |
Pull-out force return stroke | 6,2 kN |
Force generation | Hydropneumatic cylinder |
Operating pressure | 6 bar |
Location bore | Ø 25 H7 |
Clamped piece | Removable clamped piece |
Twist-free guide | Pillar guide |
Connection hose | 1/2'' |
Two-Hand safety control ZS08 | Optional |
Two-Hand safety control Spice Flex | Optional |
Standard color | RAL 7035 |
Weight | 420 kg |
Base

X1 = 50 mm stroke with 6 mm power stroke

X1 = 100 mm stroke with 6 mm power stroke

X1 = 50 mm stroke with 12 mm power stroke

X1 = 100 mm stroke with 12 mm power stroke, custom stroke length on request
Accessories
Wired foot switch with plug connection for SpiceFlex / D-Con

Two-hand safety control ZS08

Two-hand safety control ES07

SpiceFlex modular

SE Series for simple two-hand safety control.
- 01_HPPV-150kN
- 02_HPPV-150kN+ZS07
- 03_HPPV-150kN+SpiceFlex
