20 kN LP



Description for LP 20 kN

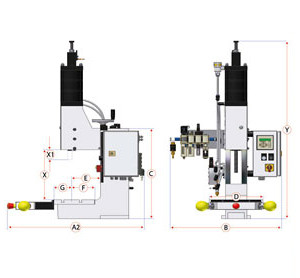

A2 930
B 650
C 590
D 300
E 160
F 130
G 100
U 29
V Ø 15 H7
X 100-320
X1 0-40 (max. 80)
Ymax 1161



Press type
Linear acting pneumatic presses
Operation
Control ( optional )
Overhang
160 mm
Installation height adjustable
100 mm - 320 mm
Stroke length
0 mm - 40 mm ( 60 mm and 80 mm optional)
Pressing force / operating pressure
20 kN / 7 bar
Force generation
Pneumatic cylinder
Operating pressure
3-7 bar
Location bore
Ø 15 H7
Clamped piece
Removable clamped piece
Twist-free guide
Prism guide
Guide play-free adjustable
By adjustment gib
Height adjustment guide unit
Hand crank
Fastening guide unit per screw
120 Nm
Connection hose
1/4''
Two-Hand safety control ES07
Optional
Two-Hand safety control ZS07
Optional
Two-Hand safety control Spice Flex
Optional
Standard color
RAL 7035
Weight
94 kg

Base

Press standard stroke 40 mm

Stroke length 60 mm

Stroke length 80 mm

Custom stroke lengths available on request

Standard press with enlarged throat

Standard press with enlarged installation height

Accessories

Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control

Wired foot switch with plug connection for SpiceFlex / D-Con

Throttle valve for stroke speed control

HGL anti-lowering guard for tools from 15 kg

Rotary table changing plate with bore only with RT.

Two-hand safety control ZS07

Two-hand safety control ES07

SpiceFlex modular

SE Series for simple two-hand safety control.

Clamping pin without collar

Clamping pin with collar

Sliding table

Heavy-duty sliding table, mechanical with electro-pneumatic control

Heavy-duty sliding table, mechanical

Heavy-duty sliding table, mechanical with locking bolt

Unique to GECHTER
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.


2x DIN 650 M8x10
