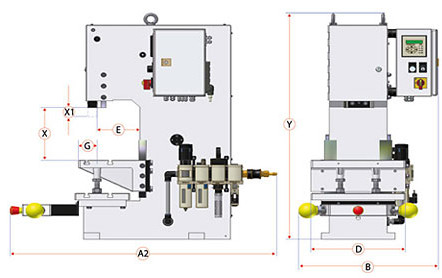

| A2 | 760 |
| B | 520 |
| D | 300 |
| E | 120 |
| G | 70 |
| U | 0-40 |
| V | Ø 20 H7 |
| Xmin | 120 |
| Xmax | 250 |
| X1 | 0-40 |
| Y | 815 |
| Press type | Pneumatic toggle press |
|---|---|
| Operation | Control ( optional ) |
| Overhang | 120 mm |
| Installation height adjustable | Max. 250 mm |
| Stroke length | 5 mm - 40 mm |
| Force generation | Toggle lever |
| Max. pressforce at lower dead center | 20 kN |
| Operating pressure | 6 bar |
| Location bore | Ø 20 H7 |
| Clamped piece | Removable clamped piece |
| Twist-free guide | Prism guide |
| Guide play-free adjustable | By adjustment gib |
| Connection hose | 1/2'' |
| Two-Hand safety control ES06 | Optional |
| Two-Hand safety control ZS06 | Optional |
| Two-Hand safety control ZS08 | Optional |
| Two-Hand safety control Spice Flex | Optional |
| Pressing forace at lower dead center | 30 kN |
| Standard color | RAL 7035 |
| Weight | 150 kg |
Accessories
Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
Wired foot switch with plug connection for SpiceFlex / D-Con
Two-hand safety control ZS08
SpiceFlex modular
Adjustable articulation piece, fine plunger adjustment
SE Series for simple two-hand safety control.
Sliding table
Heavy-duty sliding table, mechanical with electro-pneumatic control
Heavy-duty sliding table, mechanical
Heavy-duty sliding table, mechanical with locking bolt
Unique to GECHTER
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.
|
2x DIN 650 M8x10 |
