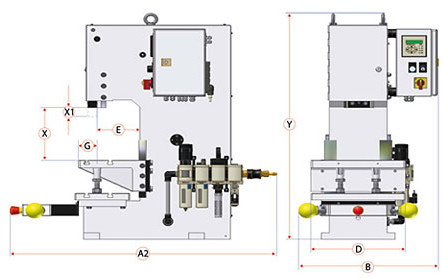

| A2 | 1010 |
| B | 540 |
| D | 360 |
| E | 160 |
| G | 71 |
| U | 44 |
| V | Ø 25 H7 |
| Xmin | 160 |
| Xmax | 295 |
| X1 | 0-62 |
| Y | 1001 |
| Press type | Pneumatic toggle press |
|---|---|
| Operation | Control ( optional ) |
| Overhang | 160 mm |
| Installation height adjustable | Max. 295 mm |
| Stroke length | 5 mm - 62 mm |
| Force generation | Toggle lever |
| Max. pressforce at lower dead center | 50 kN |
| Operating pressure | 6 bar |
| Location bore | Ø 25 H7 |
| Clamped piece | Removable clamped piece |
| Direction type | Prism guide |
| Twist-free guide | Prism guide |
| Guide play-free adjustable | By adjustment gib |
| Connection hose | 1/2'' |
| Two-Hand safety control ES06 | Optional |
| Two-Hand safety control ZS06 | Optional |
| Two-Hand safety control ZS08 | Optional |
| Two-Hand safety control Spice Flex | Optional |
| Standard color | RAL 7035 |
| Weight | 354 kg |
Accessories
SE Series for simple two-hand safety control.
Clamping pin without collar
Clamping pin with collar
Round table 2–24 pitch, suitable for presses with SpiceFlex / D-Con control
Wired foot switch with plug connection for SpiceFlex / D-Con
Two-hand safety control ZS08
SpiceFlex modular

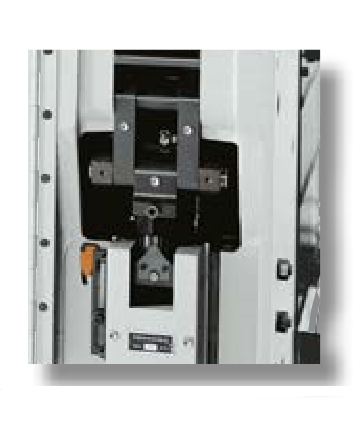

Adjustable articulation piece, fine plunger adjustment
Sliding table
Heavy-duty sliding table, mechanical
Heavy-duty sliding table, mechanical with locking bolt
Heavy-duty sliding table, mechanical with electro-pneumatic control
Unique to GECHTER
Play-free adjustable prism guide. The clamped piece can be removed forwards without damaging the clamping pin.
|
2x DIN 650 M10x12 |
